Crystalair® - 4x3 Compression Pack

CRYSTALAIR® 4x3 COMPRESSION PACK

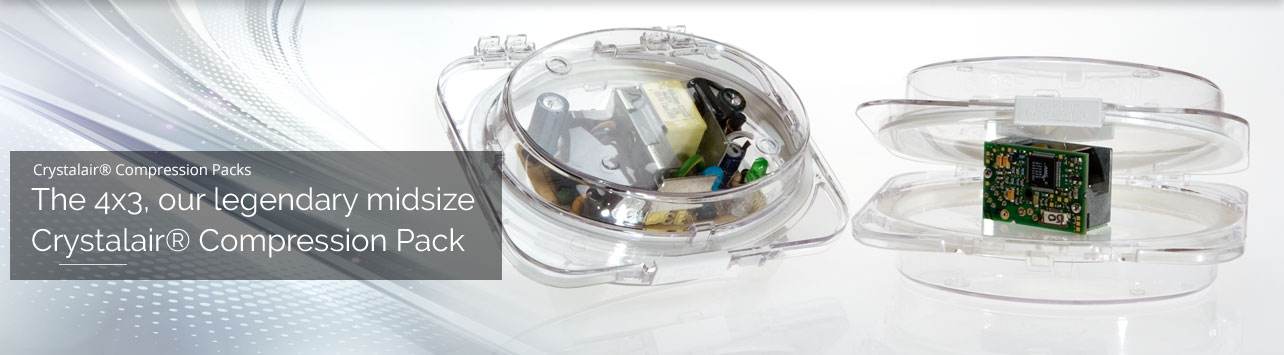

The 4x3 Compression Pack is our midsize standard pack. It provides fully transparent protection for larger valuable surface sensitive products from storage, handling, and shipping damage. The product is gently suspended and immobilized between two rings of clear, inert, polyurethane film. The rings are mounted within a clear, re-closable, injection molded container that features a positive lock closure. This allows you to visually indetify and inspect products with out exposing them to the outside elements. Useable surface area is 4” x 3” x 1.5” oval - Outer dimensions are 4.75” x 4.25” x 1.5”.

PRODUCT BENEFITS
  • Easy to use, very labor friendly
  • No out-gassing or molecular transference
  • Provides superior product protection
  • Conforms to various shapes and sizes of parts
  • Can be cleaned to Class 100
  • Can be gamma bombarded
  • Turnkey solution, ready to use out of box
  • Unique design and presentation
  • Non abrasive film protects sensitive surfaces
  • Reusable and replaceable film rings
  • STURDY CONSTRUCTION
    STURDY CONSTRUCTION

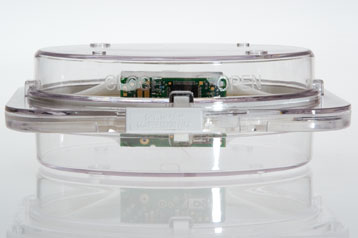

    The 4x3 features a clear, robust injection molded case with a positive lock closure system. Once secured shut the product will remain protected until it is intenionally opened.

  • HIGH QUALITY MATERIALS
    HIGH QUALITY MATERIALS

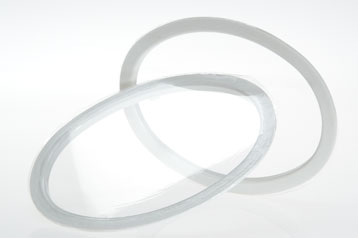

    The 4x3 membrane film is a custom blend durable polyurethane. Removable ring/film assemblies allow for easy replacement incase of accidential tears or punctures.

  • VERSATILE
    CUSTOMIZABLE

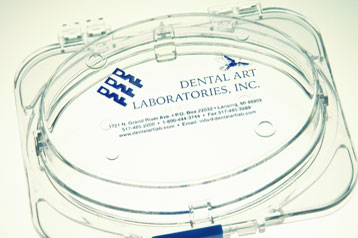

    The 4x3, and all other Crystalair® Compression Packs, can be easily customized with logos, imprints, or instructions to fit a specific customer or product need.

Whatever your needs are for shipping and protecting fragile products, we can provide an economical solution.

CRYSTALAIR® 4x3 COMPRESSION PACK APPLICATIONS

Crystalair® 4x3 Compression Packs are designed specifically to protect small to midsize delicate or fragile products and parts with highly polished and sensitive surfaces that can be easily damaged from the vibration and shock that occurs in any normal lab, production or shipping environment. Here is an example of some of the applications that benefit from using our products:

  • Polymer Optical Components
  • BGA Sockets & Adapters
  • Amplifier Tubes
  • Wedged Optics
  • University Labratory
  • IR Filters & Diffusers
  • Ball Lenses
  • Diode Laser Components
  • Sapphire
  • Holographic Optical Elements
  • Spectroscopy Components
  • Kelvin Sockets
  • Electron Tubes
  • Infared Microlenses
  • Prototype Components

PRODUCT DETAILS

Crystalair® Compression Packs outer case and rings are precision injection molded from specialty resins. Film is adheared to the rings with a propritary process that does not use any adhesive or chemicals that can contaminate the product.

The film is a propritary, non abrasive blend that is designed to provide superior protection while not marring the surface of the product. The film secures the product in place yet stretches enough to allow for dissapaion of shock. Also has no out-gassing or molecular transference.

All of our Crystalair® Compresion Packs are reuseable. In the case of damage occuring over time the film rings can be replaced while reusing the outer case. Our packaging is ROHS compliant and contains no hazardous substances or materials.

If you have a product that requires a custom design we can work with you to develop a package for your specific product or application. Our packaging designers will create a package to your requirements that will safely and efficiectly ship your product. We can also test to ITSA or ASTM standards if required.
